The STACKS

Glass Working Torch

The Stacks bench burner was designed specifically to fill the gap between our Alpha burner and our Bravo burner. After taking 2 years for research and development, we created the perfect in-between torch for both the beginner and the experienced flame worker!

Not only will The Stacks bench burner provide glass artists with a wide range of fuel mixtures, flame temperatures, and flame sizes, but it also provides them with purchasing options never before offered by Bethlehem Burners. The Top Mount and Bottom Mount can be purchased separately, thus giving flame workers the option to purchase The Stacks in stages. Additional purchasing options and prices listed below.

Locate a distributor near you to order the Stacks!

$575

Purchase includes Torch Cleaning Kit
Prices subject to change without notice
Hose set and connector set sold separately

Locate a distributor

Specifications

Burner configuration: Stacks I
6 Gas Jets
Broach Oxygen

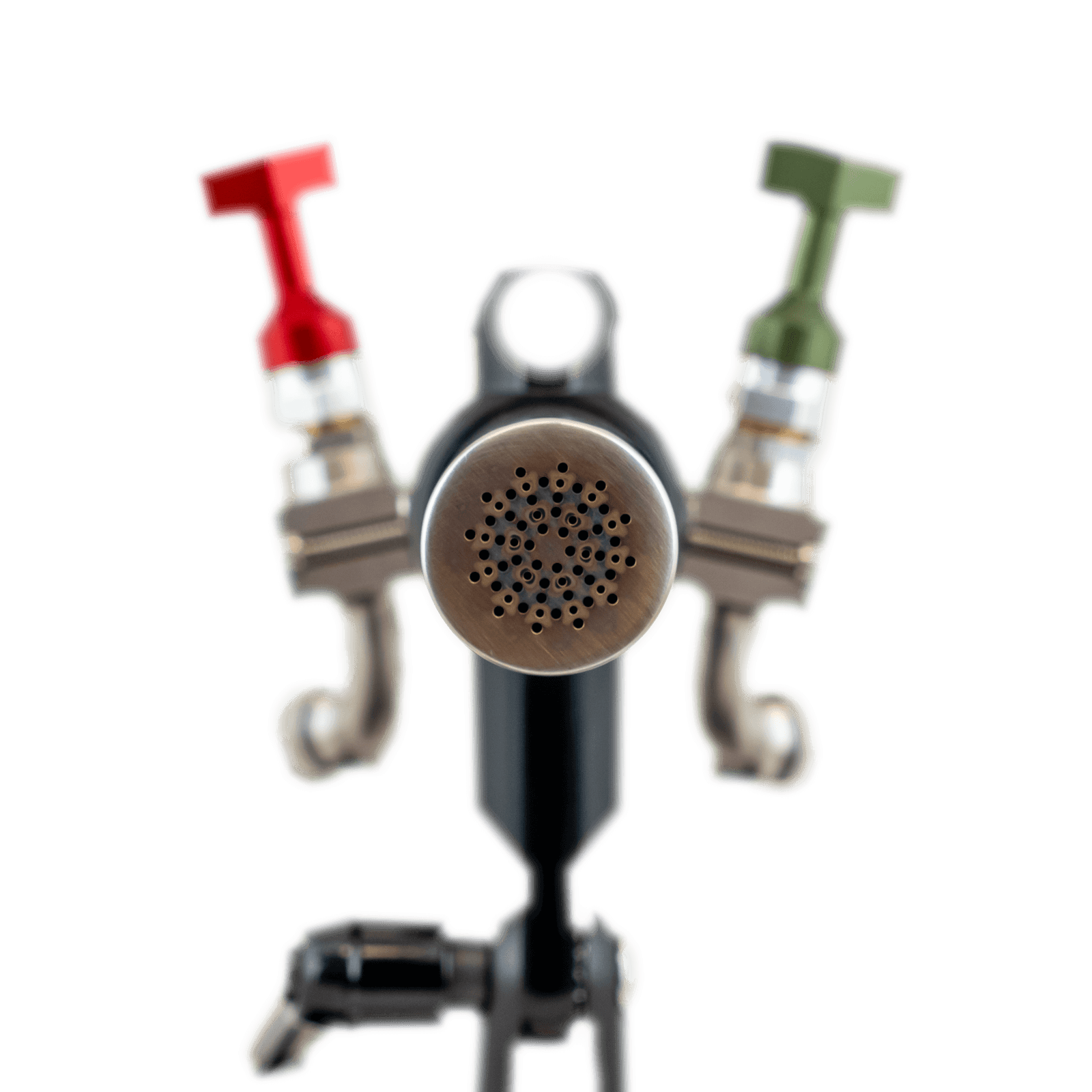

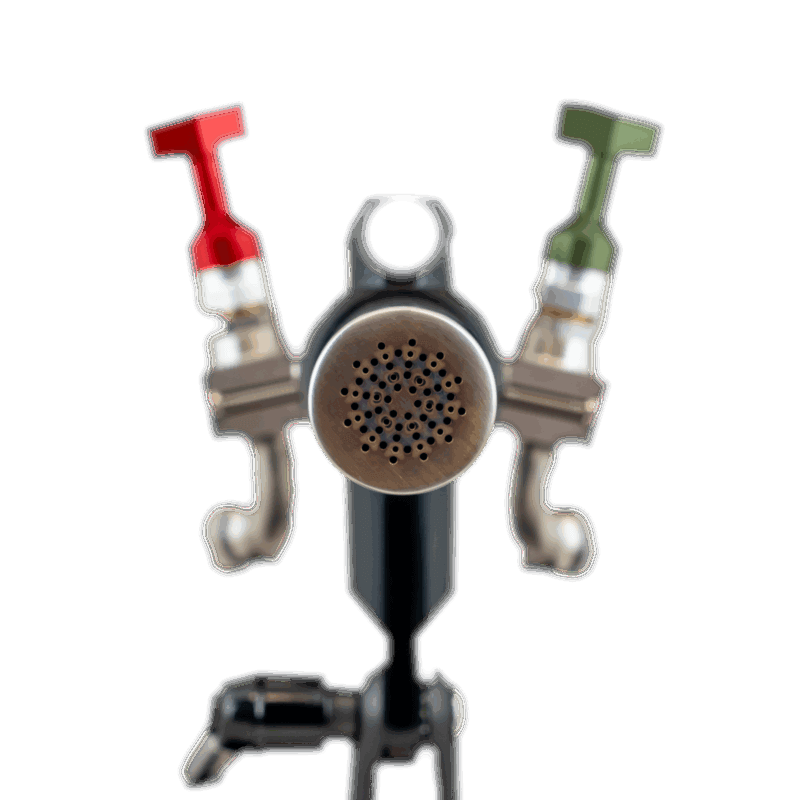

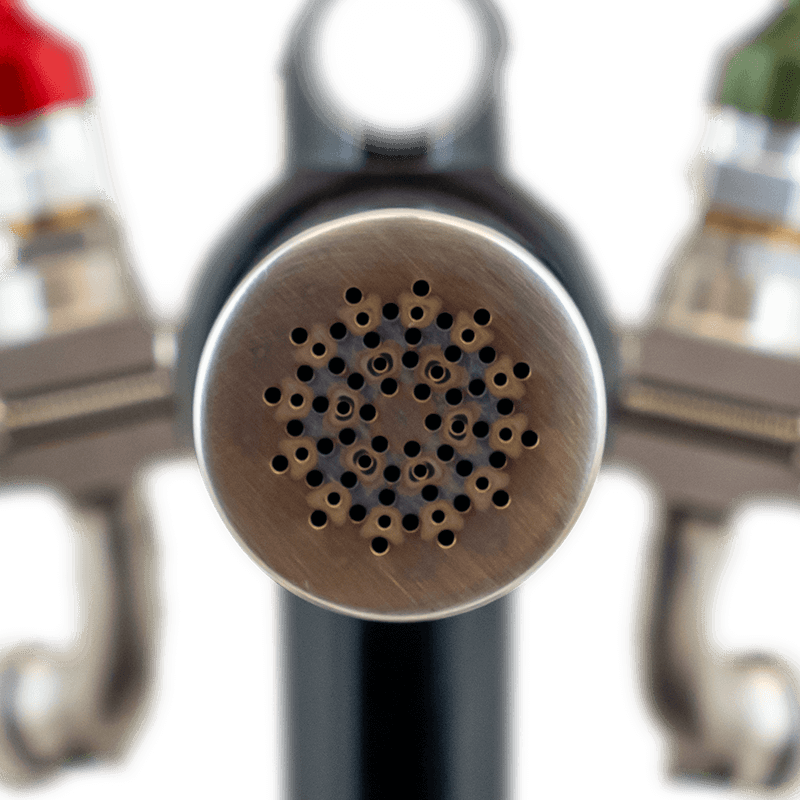

Face dia. – 3/8″Stacks II
16 Gas Jets
48 Oxygen Ports
Face dia. – 1”
Full flame consumption: Stacks I Gas: 2 lpm (120 lph)
Stacks II Gas: 4 lpm (240 lph)
Stack I Oxygen: 10 lpm (600 lph)
Stacks II Oxygen: 20 lpm (1200 lph)
Works: Stacks I Rod – 15 mm borosilicate Rod
Stack I Tube – 30 mm heavy walled borosilicate tube
Stacks II Rod – 30 mm borosilicate Rod
Stack II Tube – 44 mm heavy walled borosilicate tube
Dimensions: 7″ long with a 6″ square base
Net Weight: 3.68 lbs.

Overview

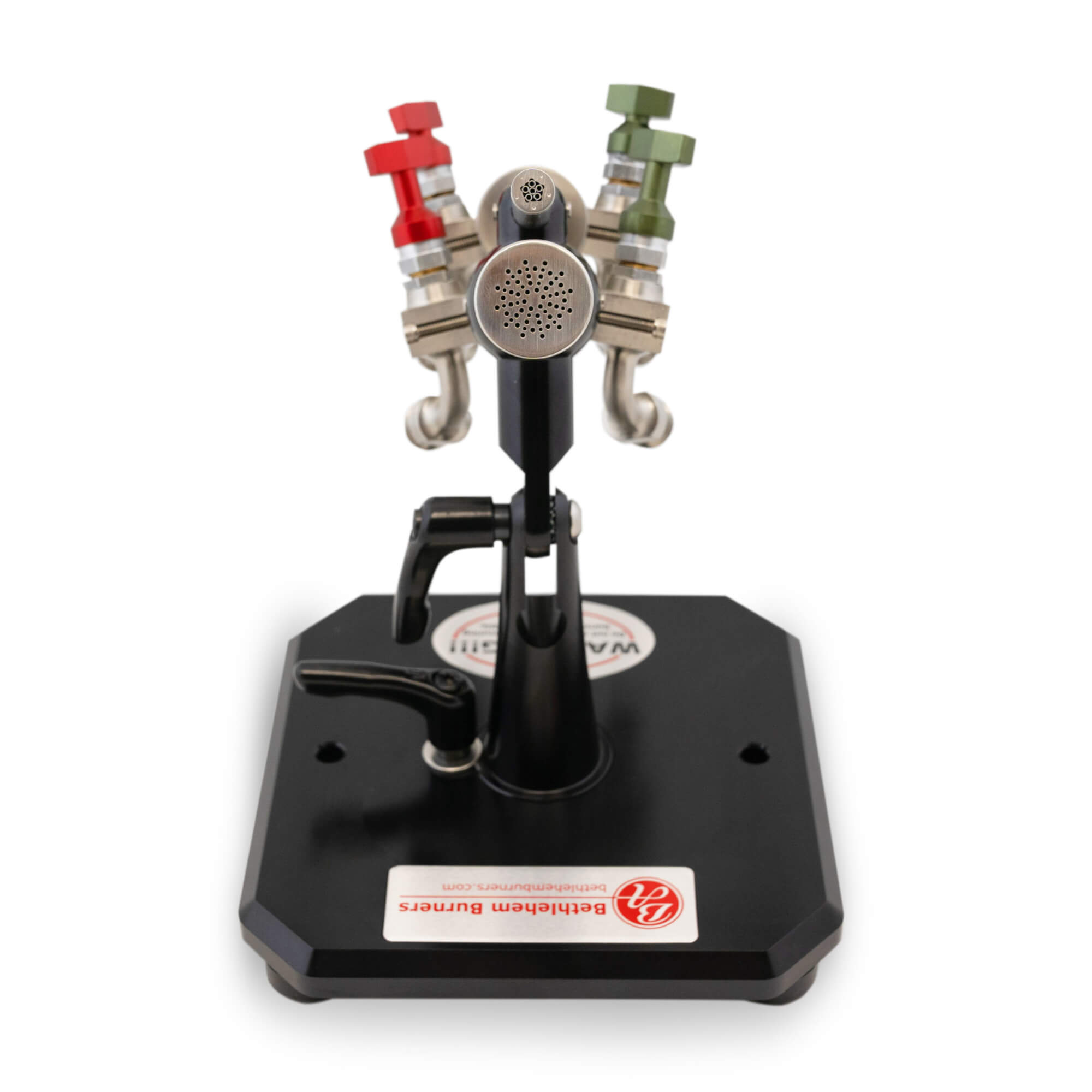

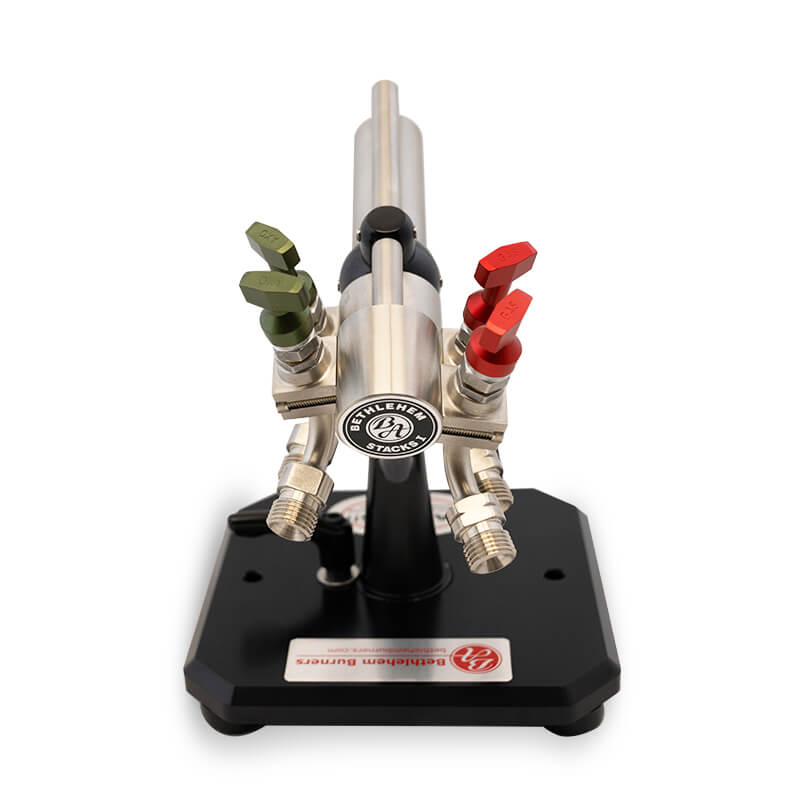

Introducing Bethlehem Burners first mid-range/mid-priced bench burner, The Stacks!

The Stacks bench burner was designed specifically to fill the gap between our Alpha burner and our Bravo burner. Not only will this torch provide glass artists with a wide range of fuel mixtures, flame temperatures, and flame sizes, but it also provides them with purchasing options never before offered by Bethlehem Burners.

Each burner is constructed primarily of stainless steel and is equipped with our one-of-kind, stainless steel modular needle valves. Each burner comes with its own B-fitting gas and oxygen hose connections, making each burner a complete and separate torch unto itself. Both The Stacks I (top mount) and The Stacks II (bottom mount) work wonderfully with oxygen concentrators. Just like the Alpha and Bravo torches, these burners excel when fueled with a low-pressure system, making them the perfect torches for concentrators.

Product Info

Purchase any variation of the Stacks below through your local distributor.

Stacks – $575.00

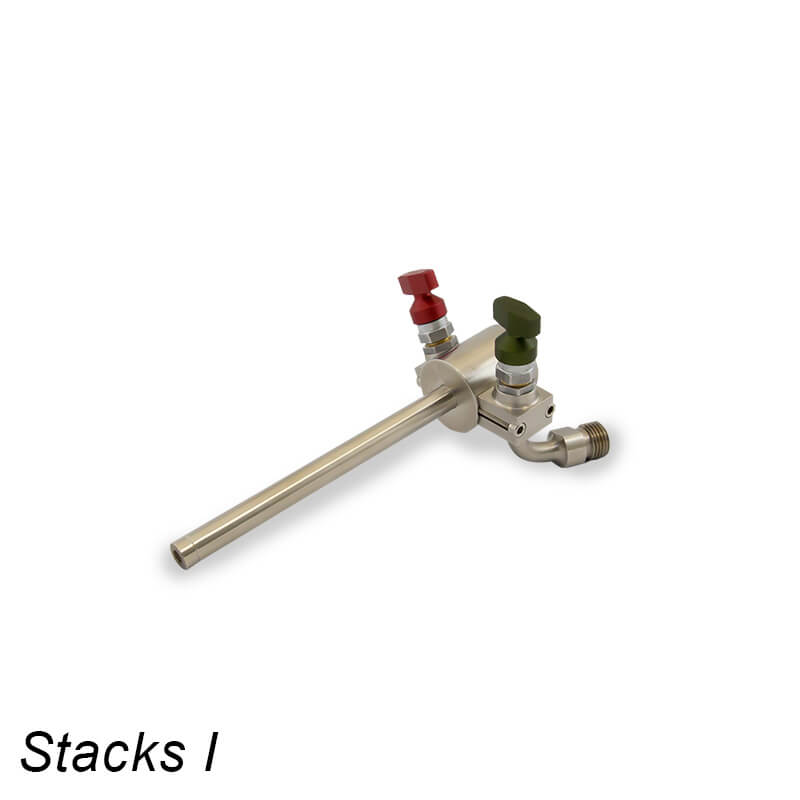

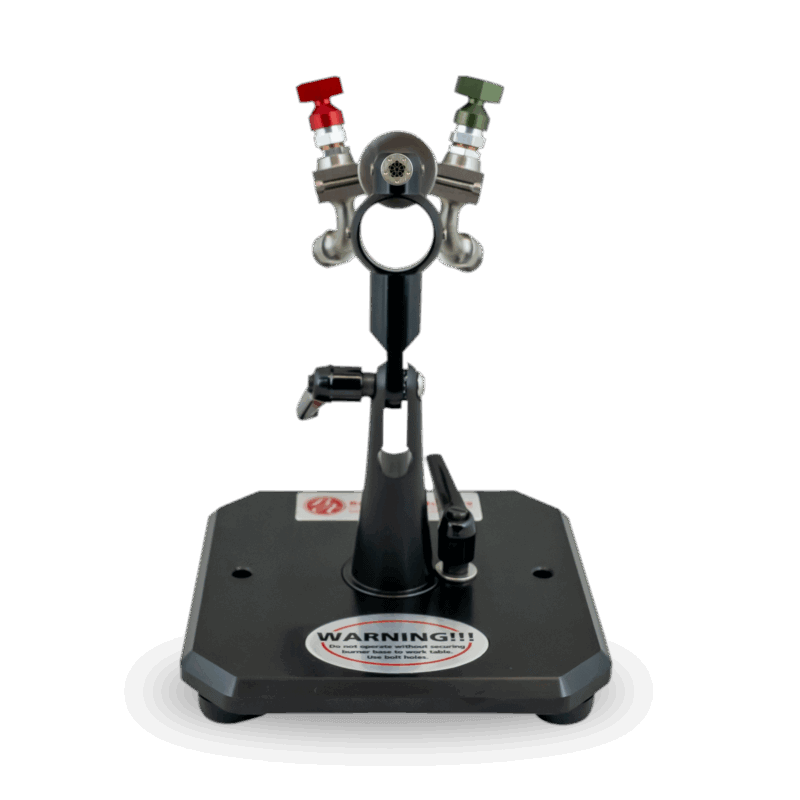

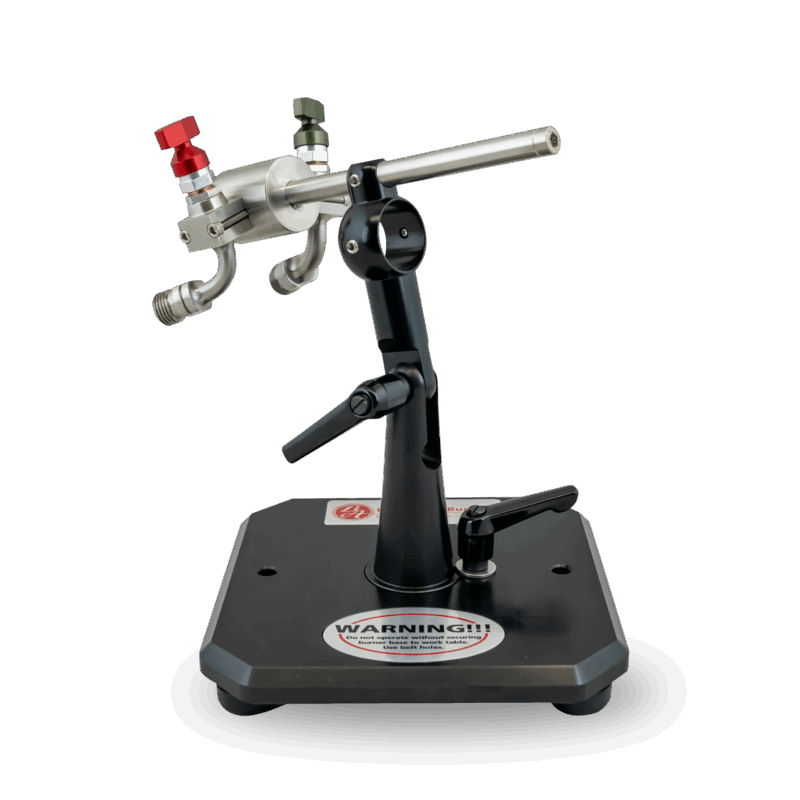

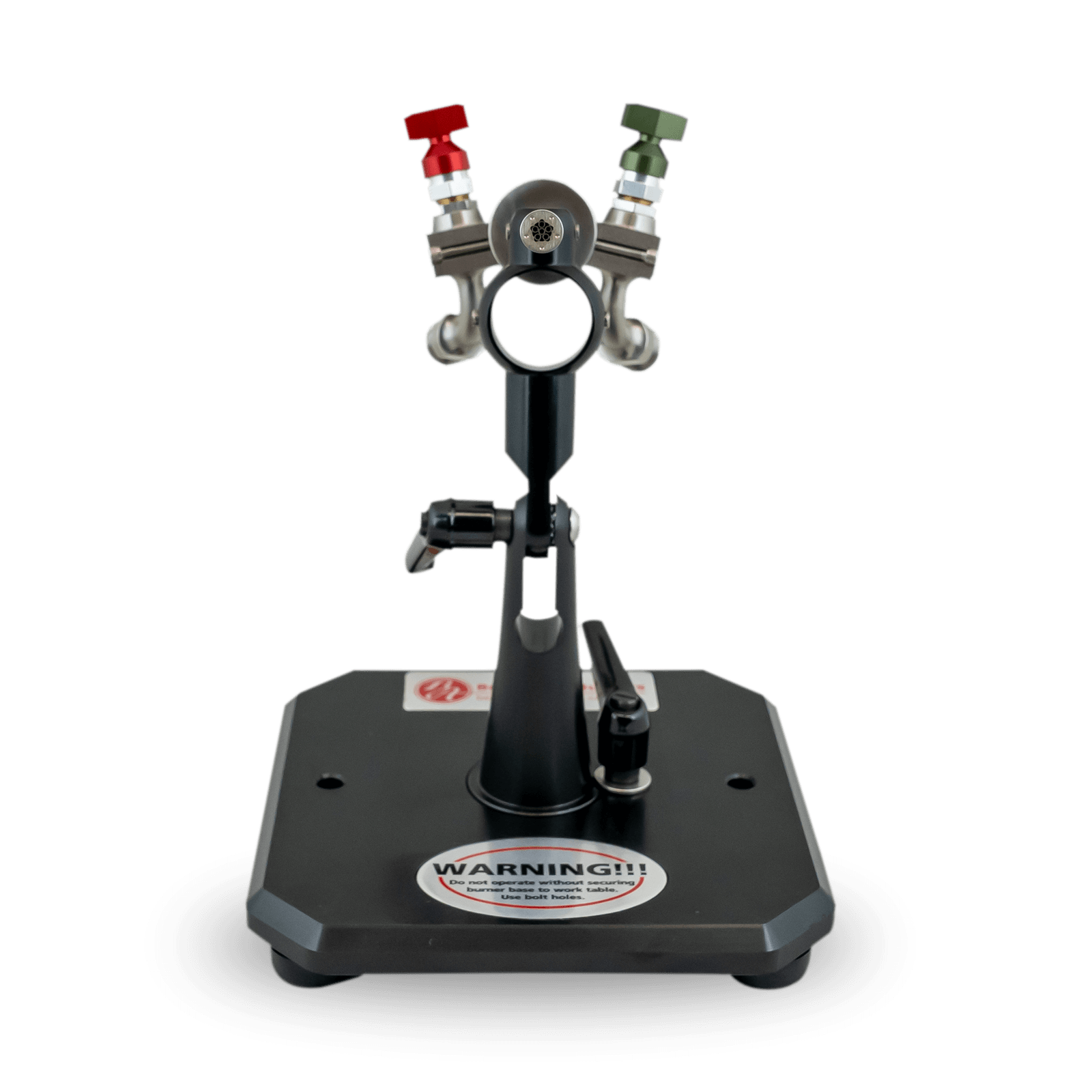

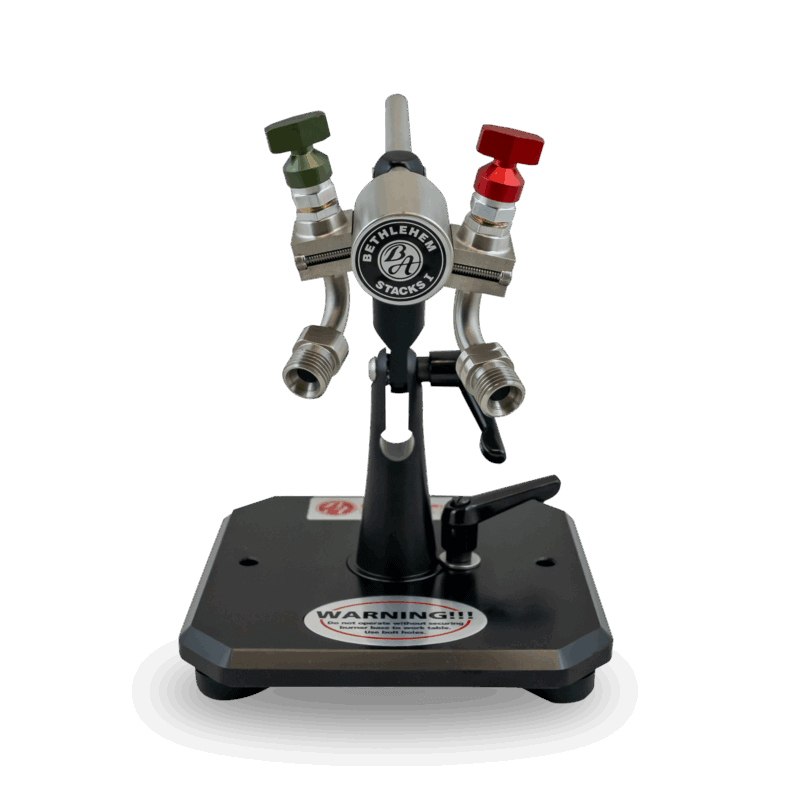

  • Stacks I – Top Mount Burner

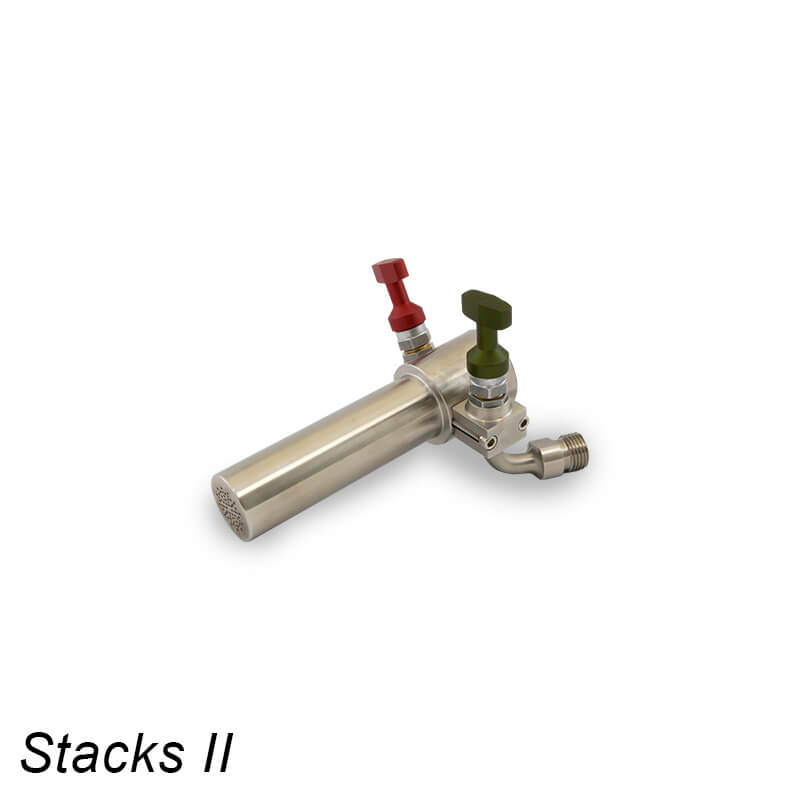

  • Stacks II – Bottom Mount Burner
  • Stacks Base
  • 4x Set Screws
  • Allen Wrench
  • Lifetime Factory Warranty
  • Cleaning Kit
  • Warranty Cards for Stacks I and Stacks II
  • Instructions

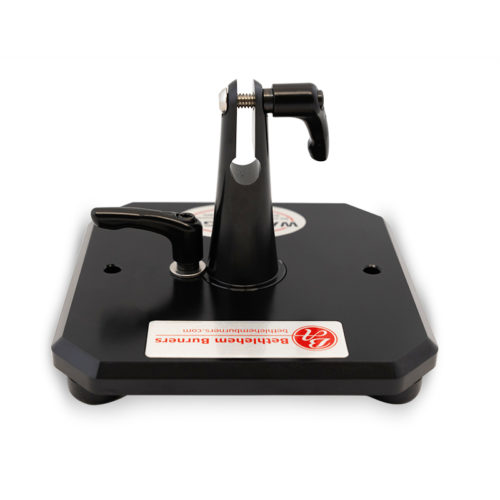

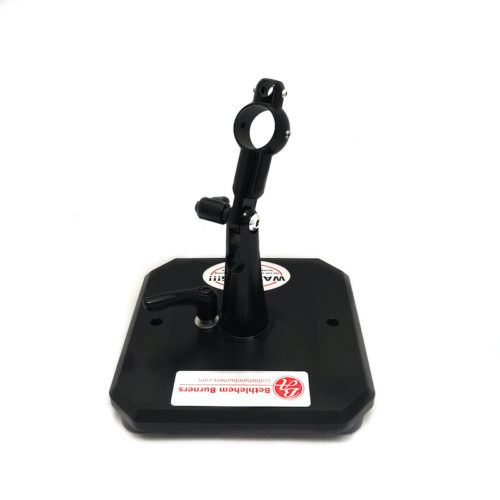

Stacks Base – $50.00

  • Stacks Base
  • 4x Set Screws
  • Allen Wrench
  • Lifetime Factory Warranty
  • Instructions

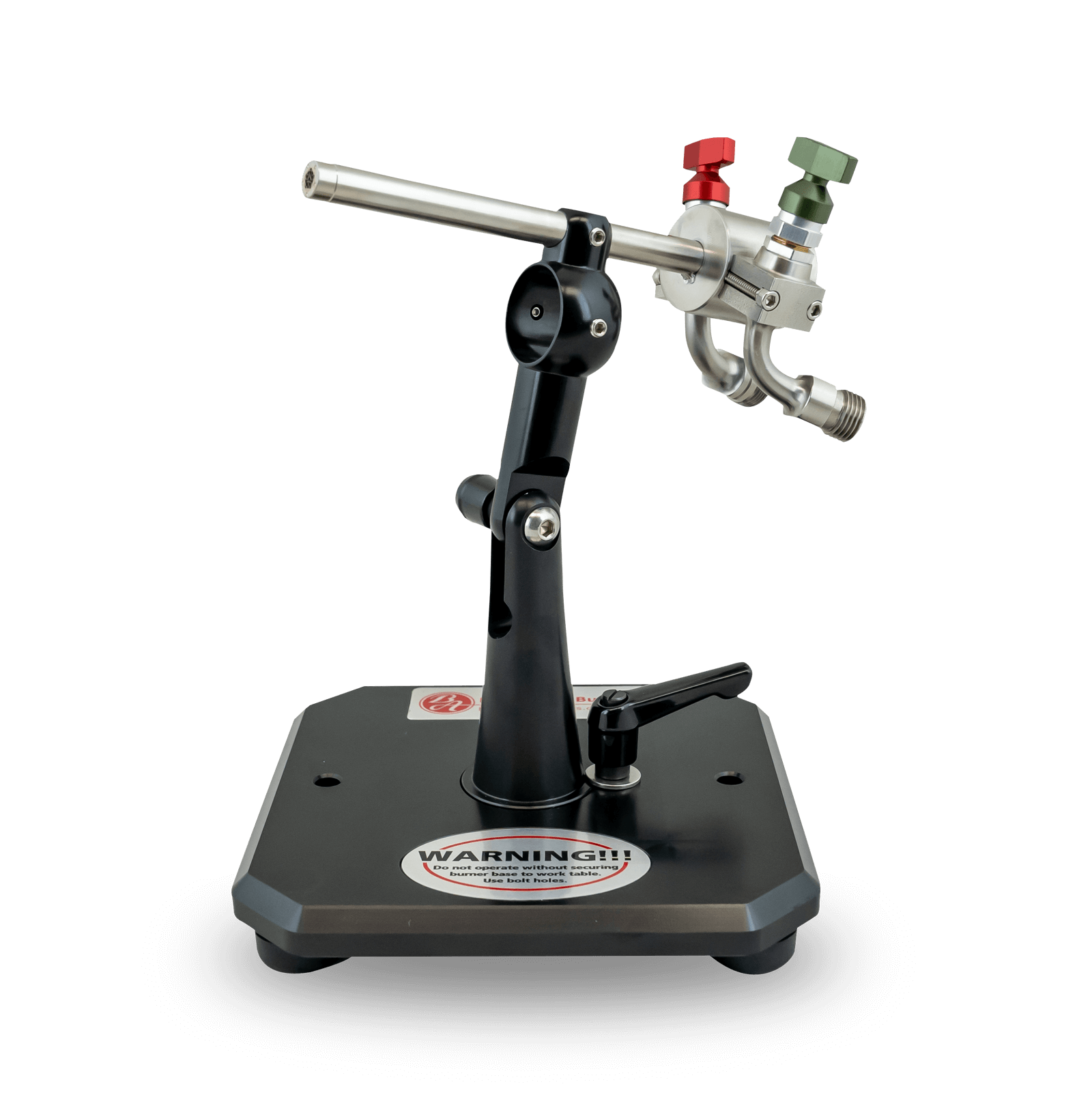

Stacks I with Base – $275.00

  • Stacks I – Top Mount Burner
  • Stacks Base
  • 4x Set Screws
  • Allen Wrench
  • Lifetime Factory Warranty
  • Warranty Card
  • Instructions
  • (Cleaning Kit Sold Separately)



Stacks I (No Base) – $225.00

  • Stacks I – Top Mount Burner
  • Lifetime Factory Warranty
  • Warranty Card
  • Instructions
  • (Cleaning Kit Sold Separately)



Stacks II – $375.00

  • Stacks II – Bottom Mount Burner
  • Stacks Base
  • 4x Set Screws
  • Allen Wrench
  • Lifetime Factory Warranty
  • Warranty Card
  • Instructions
  • (Cleaning Kit Sold Separately)



Stacks II (No Base) – $325.00

  • Stacks II – Bottom Mount Burner
  • Lifetime Factory Warranty
  • Warranty Card
  • Instructions
  • (Cleaning Kit Sold Separately)
